Beneteau First 38

Keine Angaben vorhanden

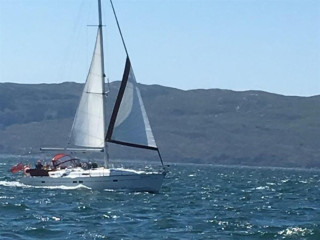

The First 38 is a powerful ocean sailing yacht with superb finishing quality rare indeed in mass production. Whit perfectly functional accommodation designed for cruising in comfort for a crew of eight.

An elegant cruiser racer from the pen of Jean Berret, with stunning interior and design features by Philippe Starck. This  2 cabin version with 1 heads and forward workshop the most popular, with the larger aft cabins berth and roomy aft head.

Construction

GRP Hull and deck with internal grid structure.

Fin keel with counter balanced spade rudder.











Engine and Mechanical

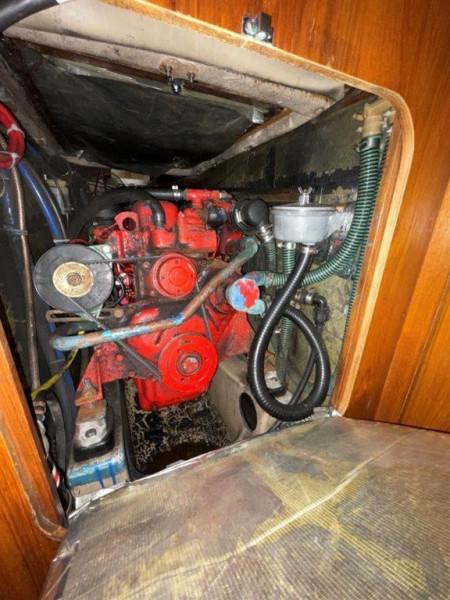

Engine

Access via stbd cabin hatch to unlock main hatch in cockpit which can be lifted free, access also from under companionway

Perkins 4108 diesel

New starter 2022

New fan belt 2022

Oil and filter changed regularly

Raw water pump impeller replaced regularly

Calorifiyer heated from engine cooling system

Aft engine bay extractor fan for engine bay, operates when ignition switch turned on

Electrical

Main consumer battery.1 Starter Battery, sealed lead acid 2 consumer battery, 1 lead acid, 1 AGM, both sealed.

2 battery isolators, top is engine start battery, normal position 1 for start, pos 2 is alternate battery(main consumer)

Bottom Isolator is consumer, normal position 1, Pos 2 is third battery

Earth Isolator switch

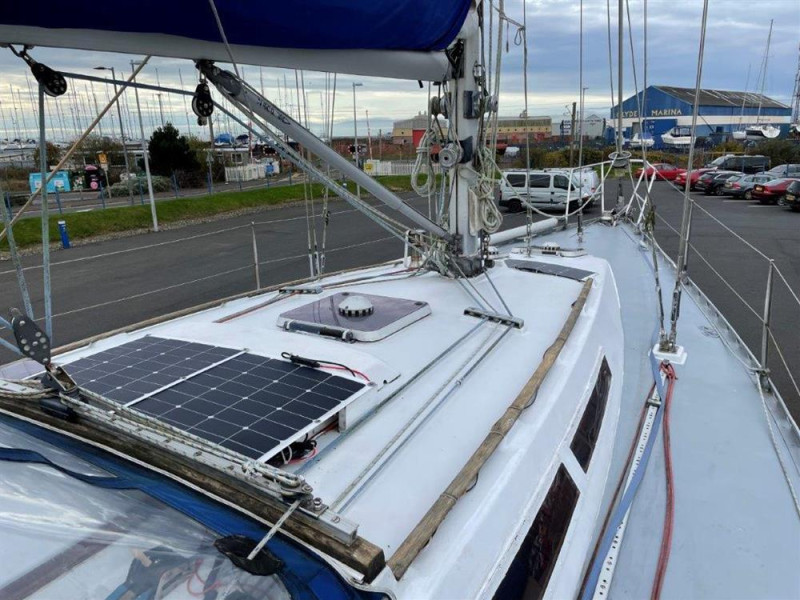

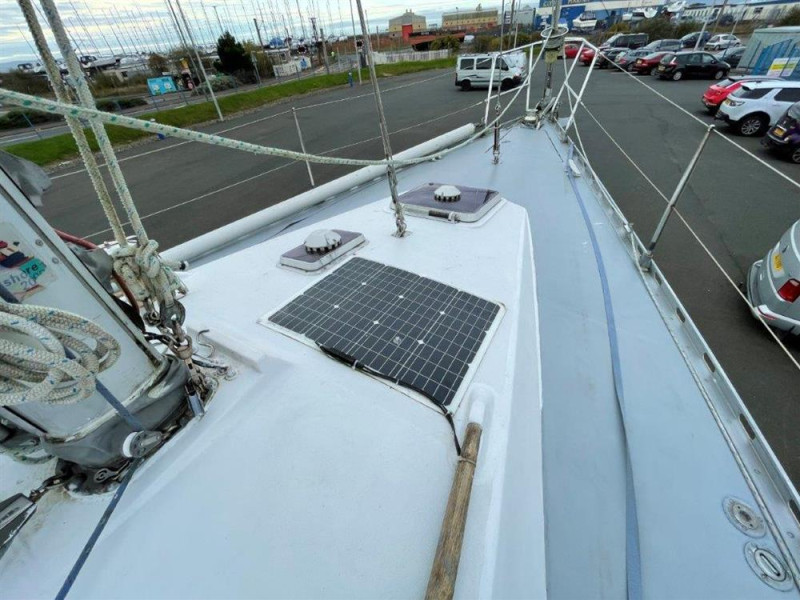

Solar Panels 250 watts at various positions with 2 channel controller

Wind Turbine 200 watt wind generator with controller and mount connected to main consumer battery.





Mast and Rigging and Sails

Mast and Boom

Masthead twin Spreader alloy mast and boom

Rigging

Standing rigging replaced replaced 2019

Running rigging is replaced as necessary

Topping lift Halyard

Main halyard , in stowed position at boom leach

Anchor light, try colour light, steaming Light Fwd deck light

Visual wind indicator

Tactic wifi wind sensor

Winches

2  single speed for main halyard and main sheet

4 Double speed for head sheets and spinnaker

Clutches

3 Main Halyard and main reefing lines on Starboard side

3 For Boom Vange Topping Lift and Main sheet

Sails

1 Main with 2 slab reefs set from cockpit. Fully battoned.

1 Roller reefing Genoa with luff Fillers

1 Hank on Genoa

1 Spinnaker

Lazy jacks with sail storage

Accommodation

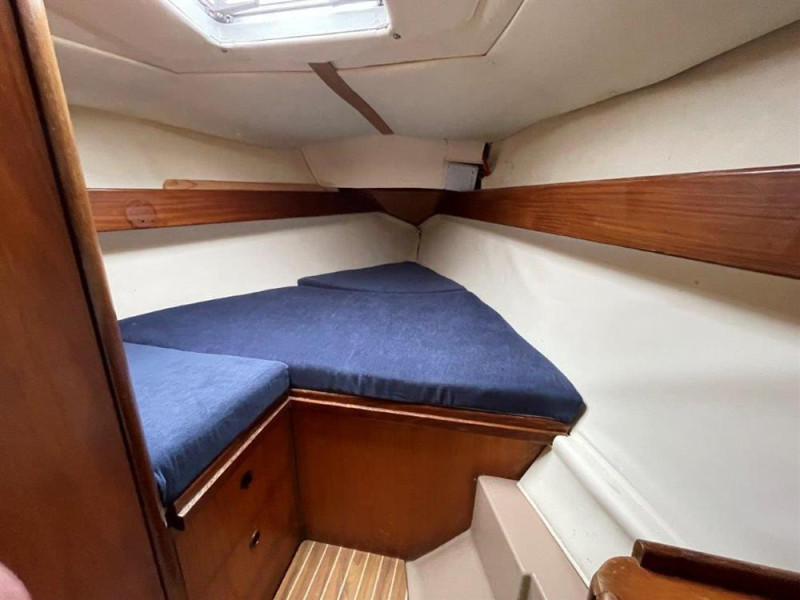

Fwd Cabin

Storage for sails, and fully cushioned top. Varoius cupboards for storage

Starboard full length cupboard has sensors for autopilot and signal conditioner for water speed and depth sensor which are mounted underfloor in fwd cabin.

Various soul boards replaced.

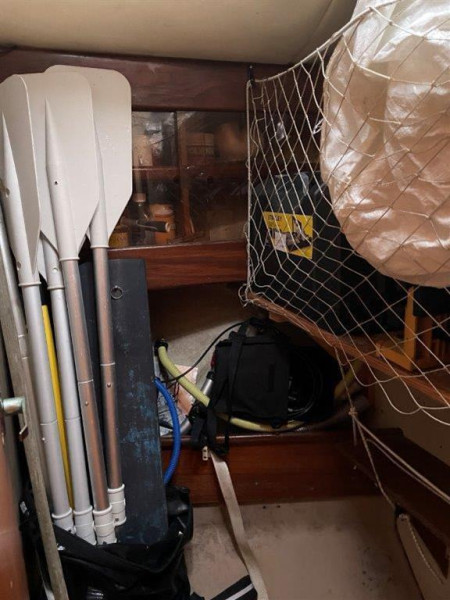

Workshop

Vice and workbench, also storage for various equipment .

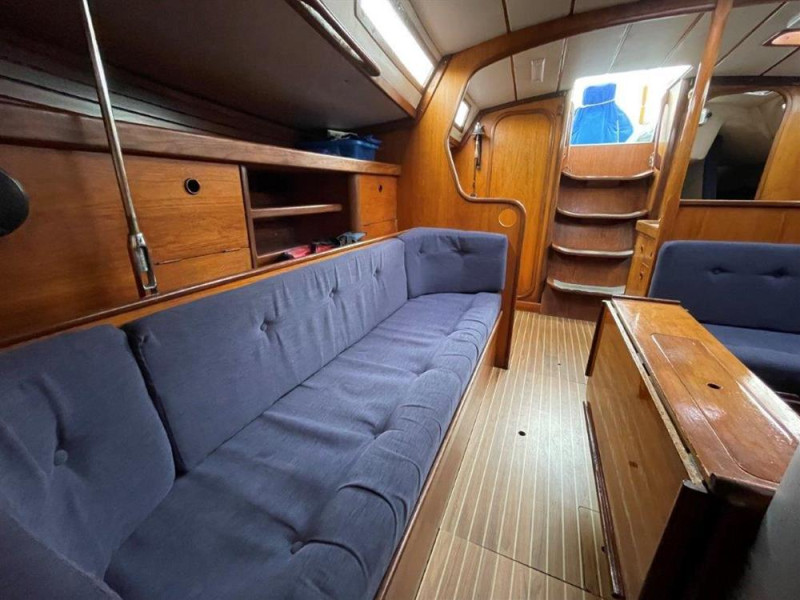

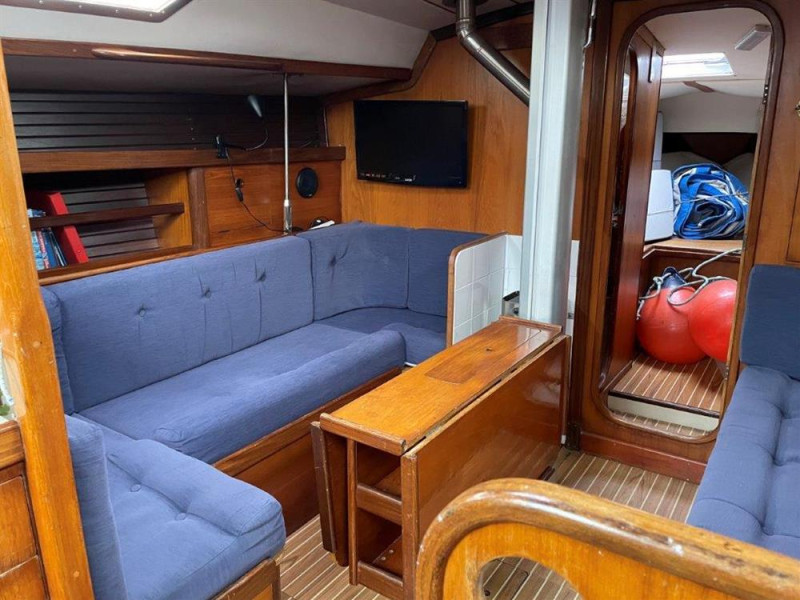

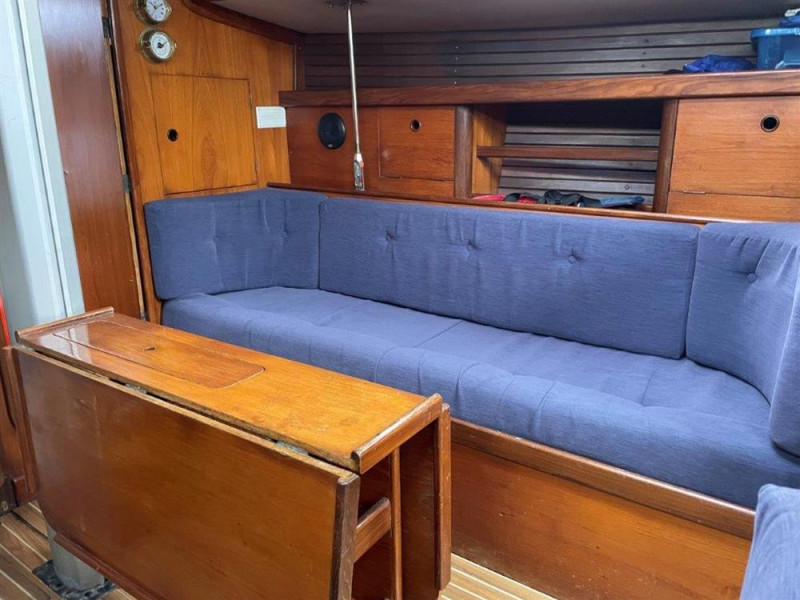

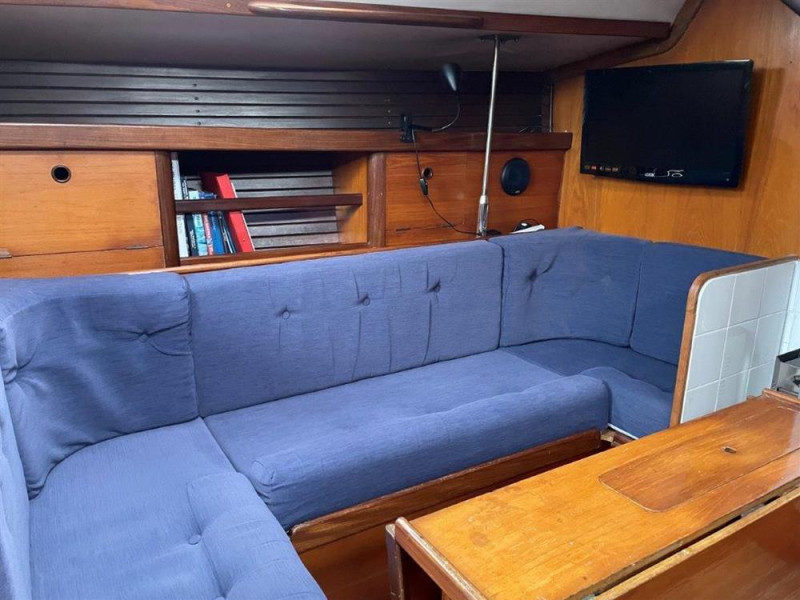

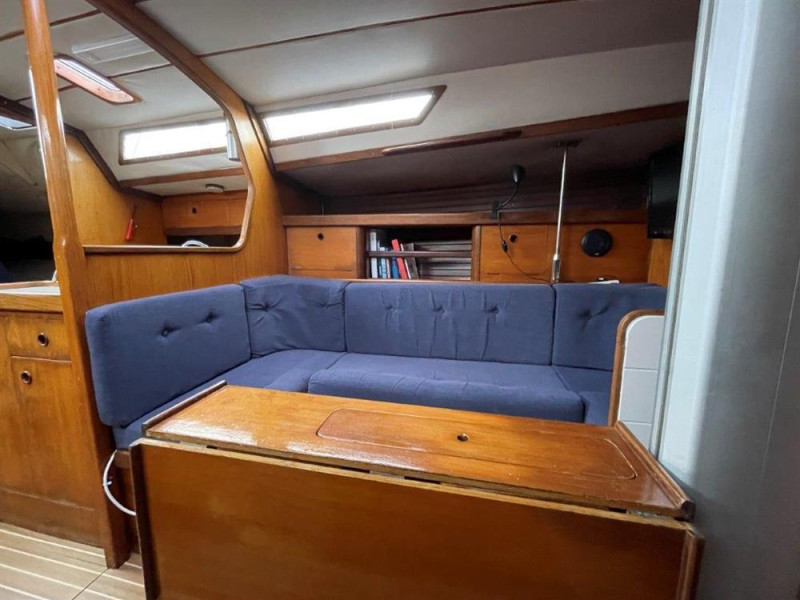

Main Cabin

Television, can be operated from mains or 12 volts with antennae

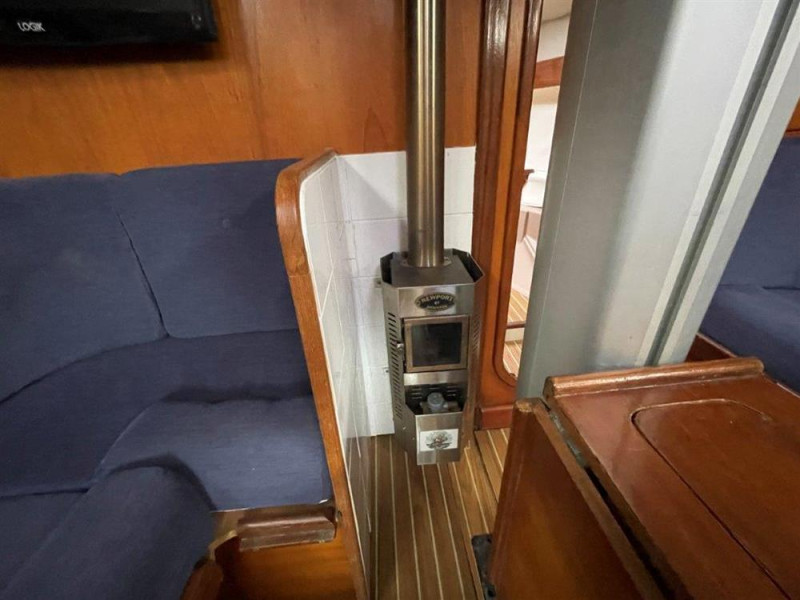

Dickens Diesel  heater and flue to upper deck.

Fully cushioned seating and folding leaf table. Through deck Mast

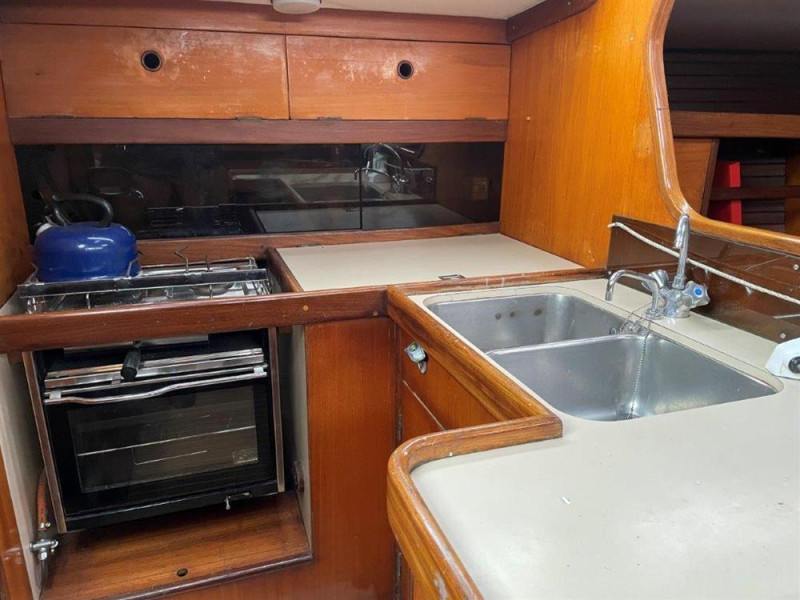

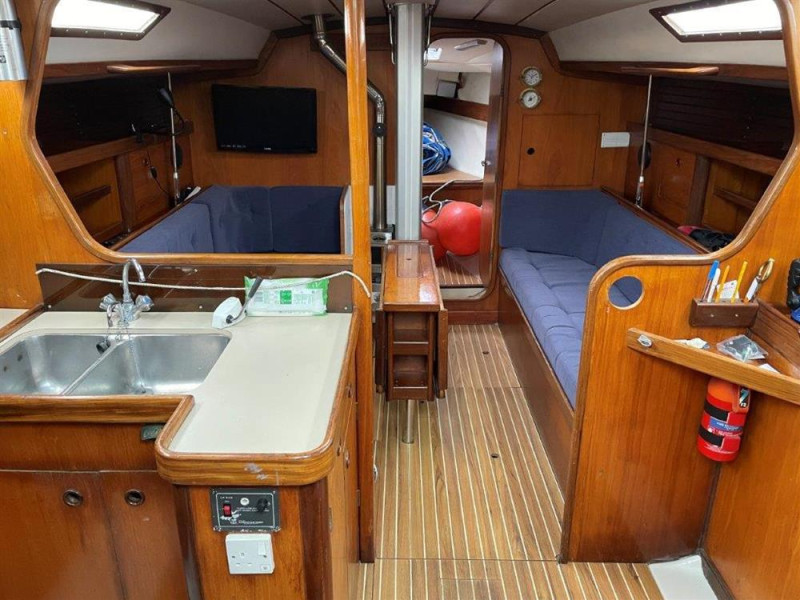

Galley

Fully gimballed gas cooker with oven and 2 rings

Twin sink units with hot and cold taps and filtered water outlet with foot pump

Refrigerator compartment and separate compressor and 12 volt electrical motor.

Various cupboard spaces with closing doors

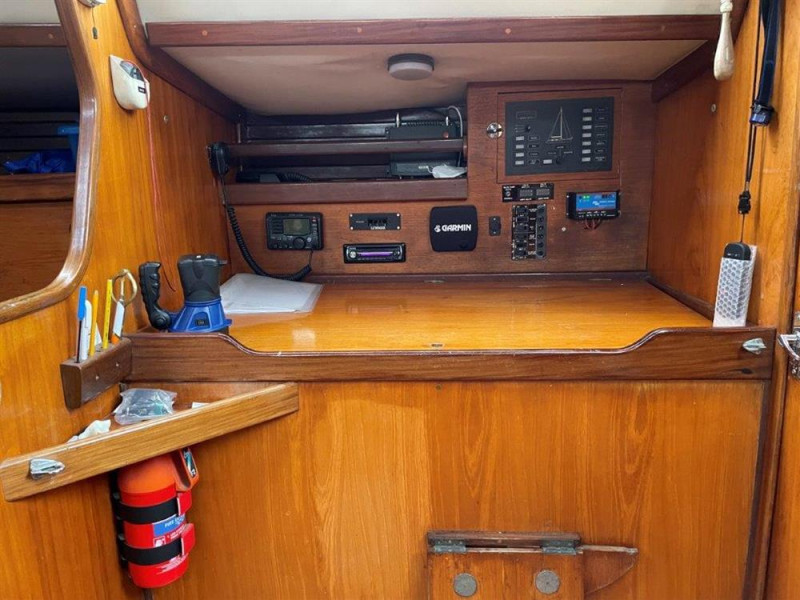

Nav Station

Map table and fold away seat, various maps and charts.

VHF DSC radio linked to garmin nav plotter for position

Main 100 amp circuit breaker for windlass.

Garmin GPS.

AIS transponder

Main Switch panel

Aux Switch panel for solar panels and Auto bulge pump

Solar panel dual channel charger.

12 Volt cigarette lighter  plug.

VHF am/fm commercial radio

Two Volt ammeters. Left hand voltmeter for starter or No 3 battery via switch on aux switch panel. Ammeter shows total solar Amps.

Right hand voltmeter for main consumer battery and wind turbine amps.

Both controlled by top and bottom switch o naux panel

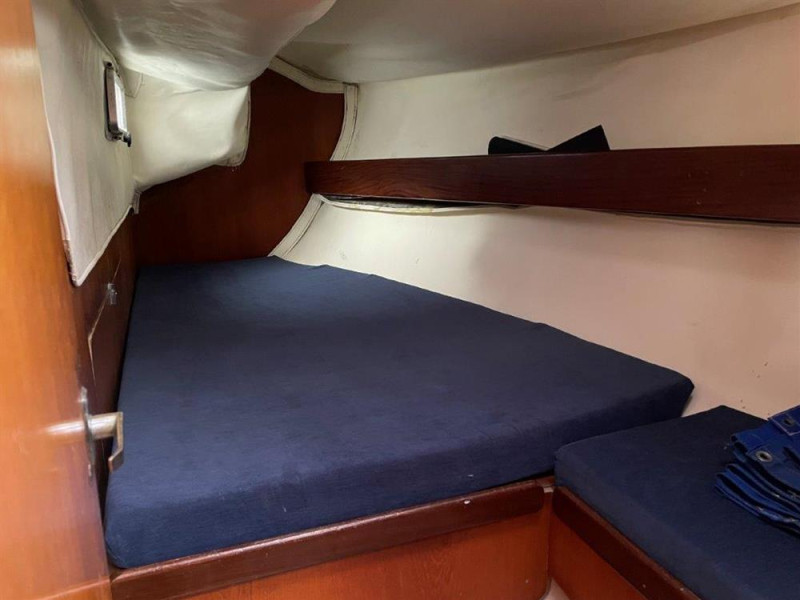

Port aft Cabin

Fully cushioned above 100 gallon fuel tank

Full length cupboard

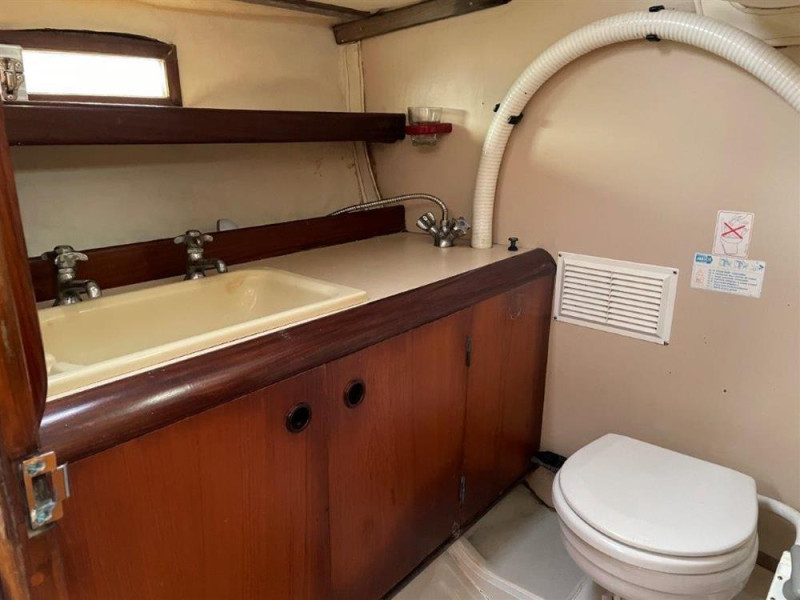

Heads

Sea water flushing toilet. New base and seals 2020

Sink with hot and cold taps

Shower head with hot and cold taps

Storage cupboards.

Inventory

Electronics

Helm wheel Instrument pod with Tacktic wind and speed and depth displays

Autopilot controller

Mounts for two Tacktic wind depth indicators

Small voltmeter for power to helm intruments

Garmin 751 with fish finder, fully integrated with Autopilot and tactic

Wind instruments

G2 map of west coast of Scotland, needed  To get full use of Autopilot.

Vhf Radio Remote Controller connected into Stbd  Helm hatch connector

Autopilot Garmin GHP with electric actuator, fully integrated with Tactic wind and Nav  Plotter

Remote controller

Wind vane steering system

Chart Table

VHF DSC radio linked to Garmin plotter for position

Garmin GPS.

AIS transponder

EPIRB

Handheld Compass

VHF am/fm commercial radio

Mooring and Anchoring

Anchor One CQR with 50 meters of 10mm chain and 20 meters rope, and shock absorber. A few meters of 3/8 bb chain

Vertical windlass.

Assorted mooring lines and fenders

Canvas Work

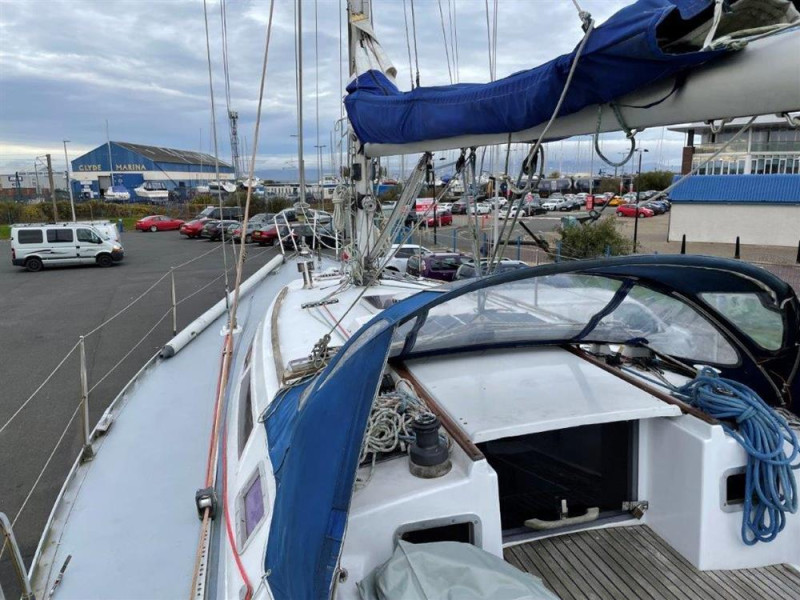

Wind break canvas with clear view panels over companion way

Port and Starboard wind dodgers.

General

Tender 2.6 meter dingy with two sets of oars, new 2020

Liferaft  4 Man, new 2018 will get serviced

Recent work

Standing rigging replaced 2019 (Clyde Rigging)

Sacrificial strip on Genoa 2019

Seacocks replaced 2 in heads, 1 in Galley 2020

Several floor boards replaed 2021

New Engine starter 2022

New fan belt 2022

New Garmin April 2017

Features

• Lazy bag
• Spinnaker - symétrique avec tangon et chaussette
• Marine head
• Mainsail cover
• Battened mainsail
• Solar panel
• Electric bilge pump
• Log speedometer
• Manual bilge pump
• Steering wheel
• Genoa - usé à 30 %
• Autopilot
• Wind generator
• Gangway
• Depthsounder
• Tender
• Gps
• Wind speed and direction
• Lazyjacks
• Spray hood
• Vhf - Qty: 2
• Plotter
• Liferaft
• Heating
• Radio
• Oven
