Victoria 30

Keine Angaben vorhanden

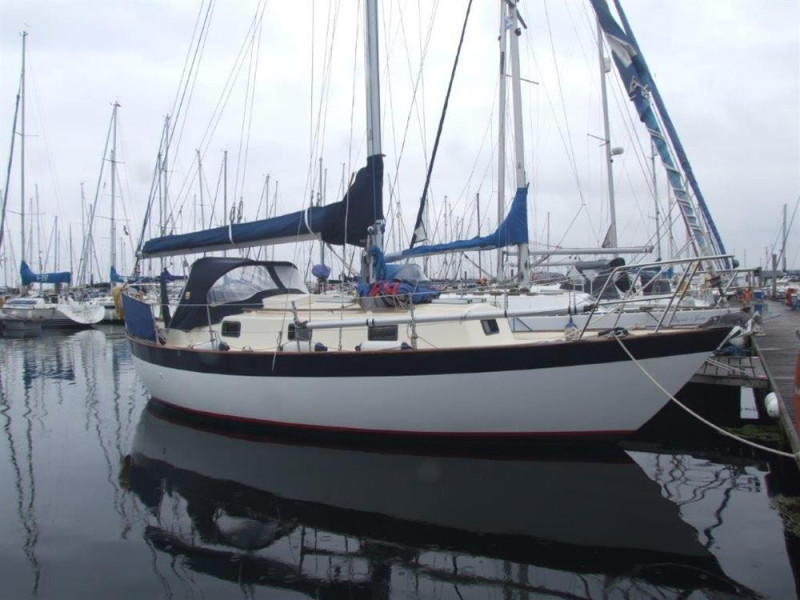

Designed in the late 1970's by American yacht designer Chuck Paine the Victoria 30 has enjoyed production runs with builders on both sides of the Atlantic and has built a loyal following of owners and admirers. The design is unmistakably traditional with a full canoe body, full-length deep keel and canoe stern creating a very sea-kindly hull form which performs well in all weathers.

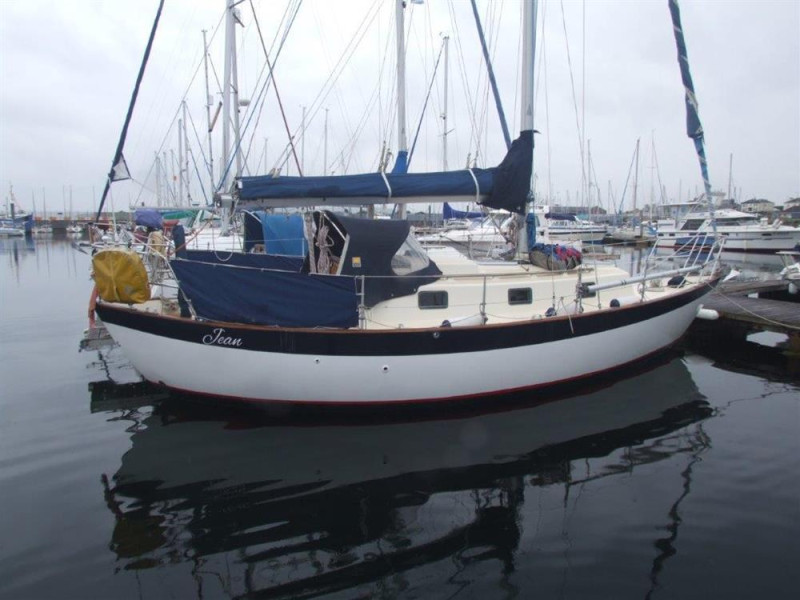

The Victoria 30 'Jean' is a much loved example of the class having been just been through refurbishment work to her decks and additions of new Navigation equipment
A true sail away ready boat.

Construction

Hull:

Single piece GRP moulded hull.

Hand consolidated polyester laminate.

Plywood bulkheads glassed to hull on both sides.

Internal moulding forming base to saloon seating units and heads.

Topsides professionally painted in 2012.

Deck:

Single piece GRP moulded deck with an integral cockpit.

Hand consolidated polyester sandwich laminate.

Solid Teak Capping Rail

Solid teak grab rails and eyebrow on coachroof.

Deck completely refurbished 2022 with core removed and replaced.

Keel & Rudder:

Full-Length Traditional Encapsulated Keel

Full Depth Rudder supported on pintel at aft end of keel

General:

Stainless steel pulpit and pushpit rails.

Deck mounted alloy stanchions supporting stainless steel guardwires.

Mould bulwark/toerail outboard with solid teak capping rail.

Teak grabrails running the length of the coachroof.

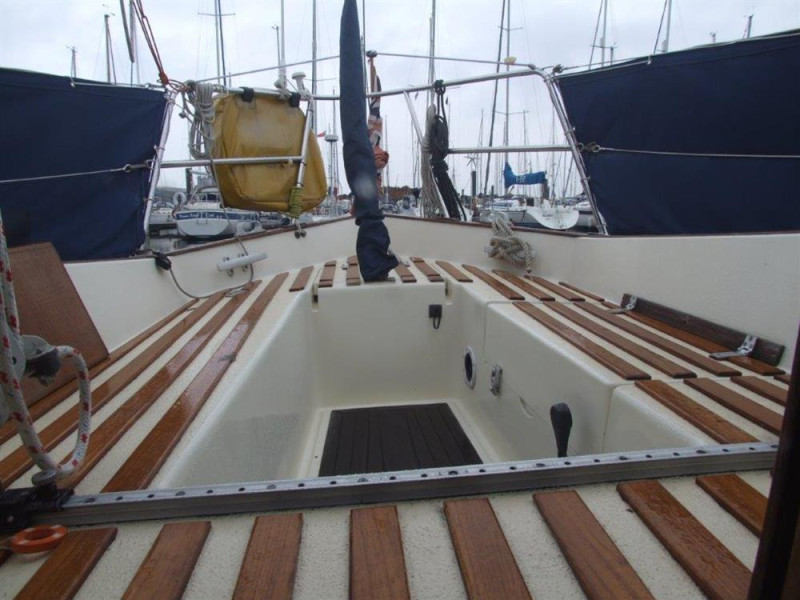

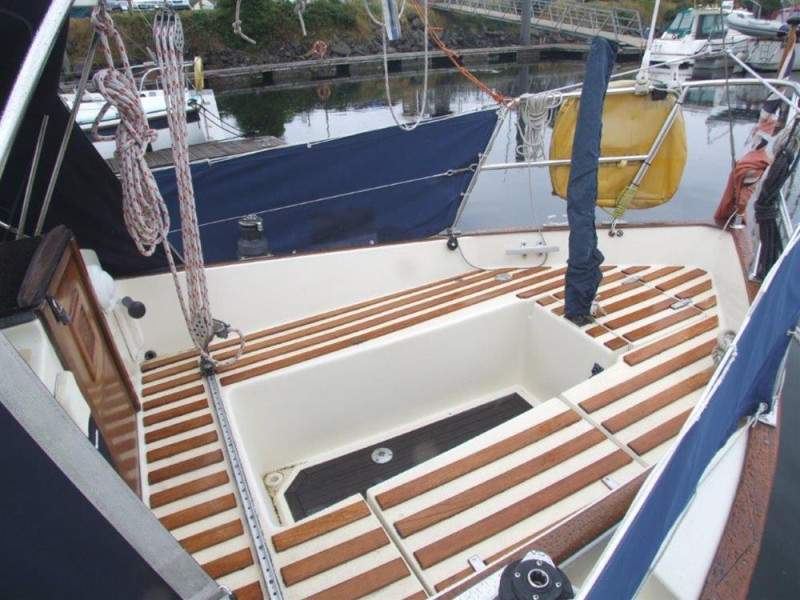

Cockpit:

Moulded coamings protecting the cockpit.

Primary winches mounted on coamings with stainless steel bracketry to support.

Wrap around cockpit seating.

Mainsheet crossing forward end of cockpit.

Halyard winches and rope clutches port and starboard sides of the companionway.

Lockers provided under port and aft cockpit seating.

Primer and Antifouled June 2022



Mechanicals

Engine & gearbox:

Yanmar 2GM20F, 18hp marine diesel engine.

2 cylinder, naturally aspirated, indirectly cooled.

Kanzaki mechanical marine gearbox.

Single lever engine control

Maintenance & Performance:

Engine last serviced November 2022

Cruising speed under engine 5kts

Propulsion & Steering:

Stainless steel prop shaft

Fixed, three blade, bronze propellor

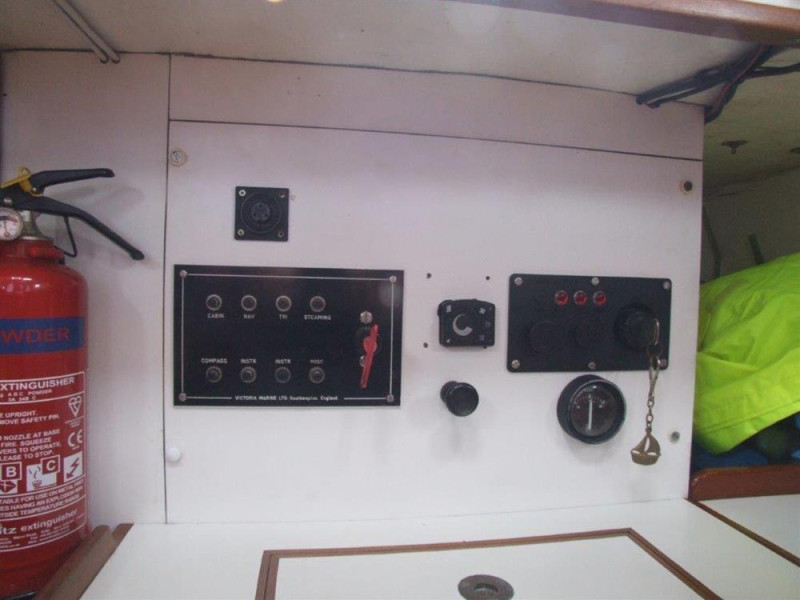

Electrical

Voltage systems:

12VDC onboard power system

Shore Power fitted 2022

Battery Banks:

Battery Bank Engine Start 1 – 1x 12VDC, 110Ah, lead acid New 2021

Battery Bank 2 Domestic  – 1x 12VDC, 110Ah, lead acid New 2021

Charging:

Single engine driven alternator

Shore Power battery charger

Fresh Water:

Electric pump on demand cold water only system.

Manual hand pump galley faucet.

Whale hand pumped faucet in heads

Plumbing in place for hot water system, calorifier not fitted.

Bilge Pumps:

Manual Bilge Pump

TANKAGE

Fuel: 1x  diesel tank, Stainless steel tank, Approximate capacity 55ltr

Fresh Water: 2x fresh water tanks, Plastic tanks, Approximate total capacity 120ltr

Mast Rigging and Sails

Rig:

Keel stepped, single spreader, masthead sloop rig.

Silver anodised alloy spars by Proctor Masts

Standing rigging of 1x19 stainless steel wire age unknown

Colnebrook roller reefing system on forestay reefing line controlled on captive winch in cockpit.

Slab reefing mainsail

Block and tackle kicker

Winches:

Primary Winches 2x Lewmar 30, two-speed, self-tailing

Mast Halyard Winches 2x Lewmar 16, single-speed.

Sails:

Mainsail White Dacron, slab reefing

Genoa White Dacron, roller reefing

Canvas Work:

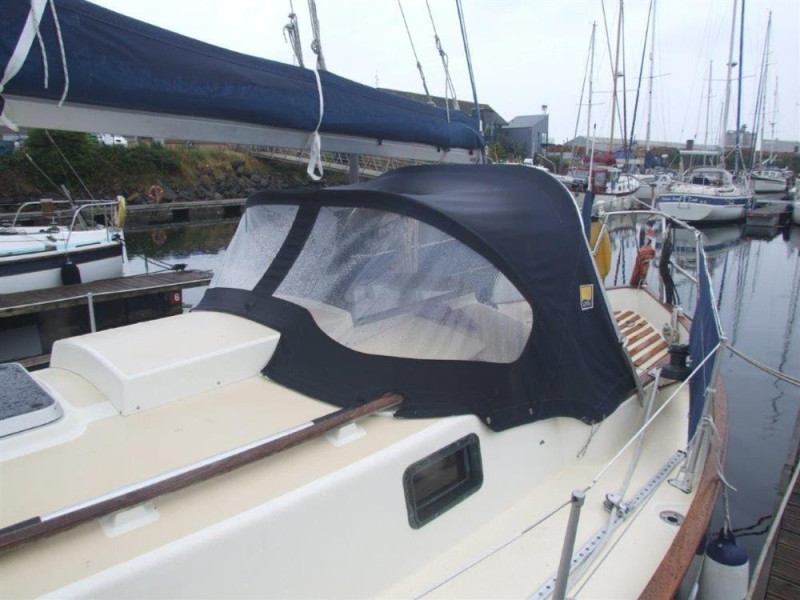

Sprayhood

Mainsail cover

Windlass cover

Accommodations

Twin cabin forward converting to double

Heads compartment with hanging locker

Saloon converting to provide 2 occassional berths

Galley

Nav Station with quarter berth aft

GRP moulding forming base to furniture units and sole

Joinery work of teak veneered plywood with solid teak trims finished in satin varnish
Teak and holly veneer soleboards

Hull lined with strip planking where visible

Laminate panel headlinings with varnished teak trims to finish

Description of Accommodation from Forward:

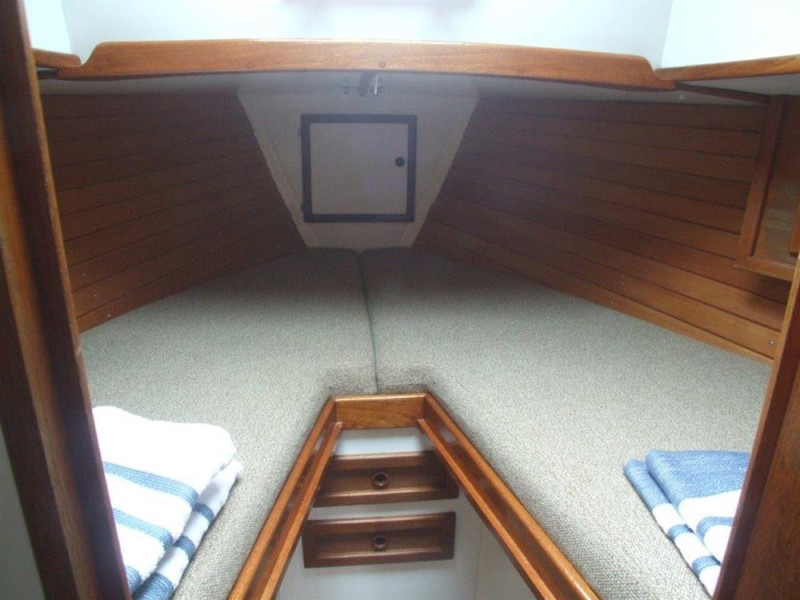

Forward Cabin:
V-bunk in the traditional style with in-fill section to create a double when required.

Cabin sides are finished in panelling strip planking.

Lockers provide above bunks outboard port and starboard aft.

Drawers provided beneath central section of bunk forward

Cave locker storage beneath aft section of bunk.

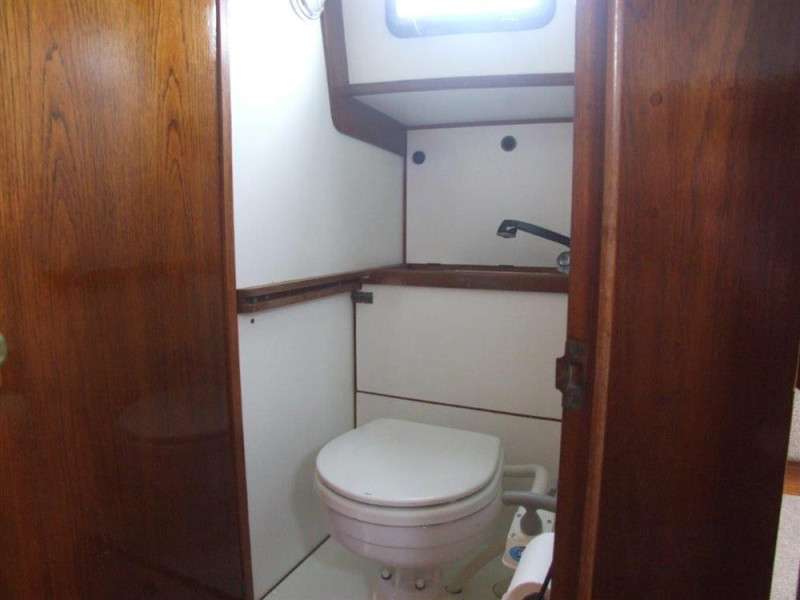

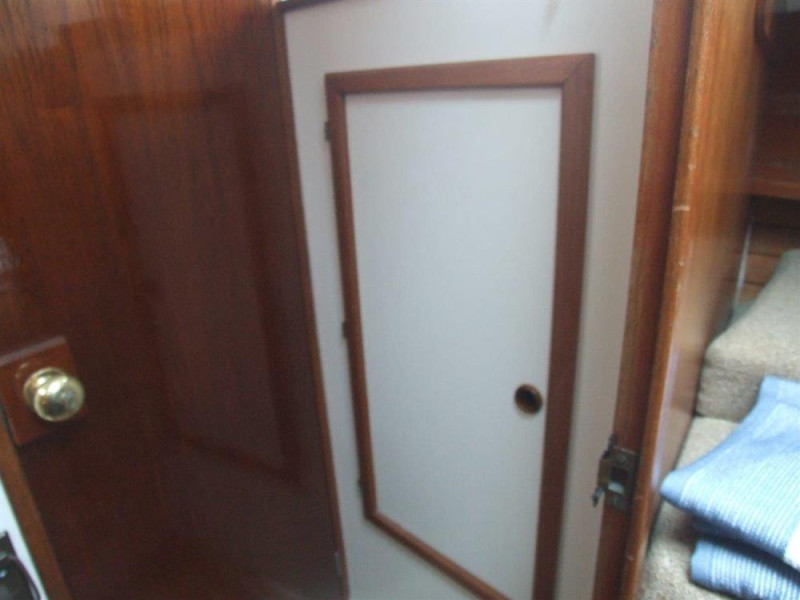

Heads:
Spanning the full width of the boat just forward of the keel stepped mast.

Double doors separating the compartment from the forepeak and saloon.

Manual sea toilet located to the starboard of the compartment.

Pull-out sink and vanity unit outboard to starboard.

The heads sink faucet doubles as a shower head with the tray draining into self contained sump and pumped overboard.

Hanging locker to port.

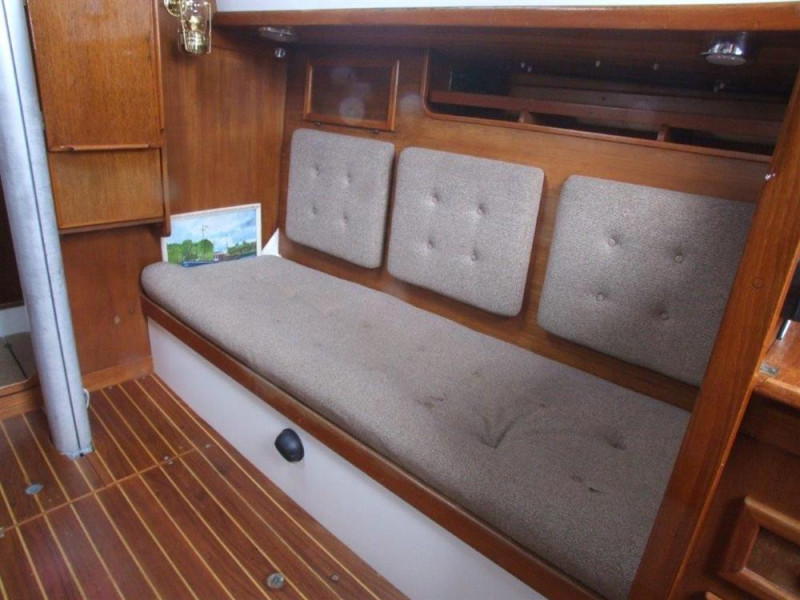

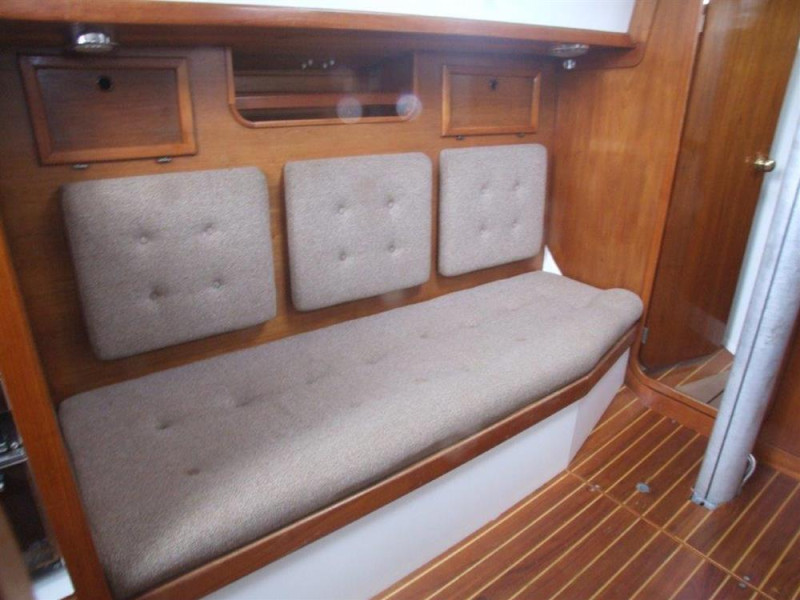

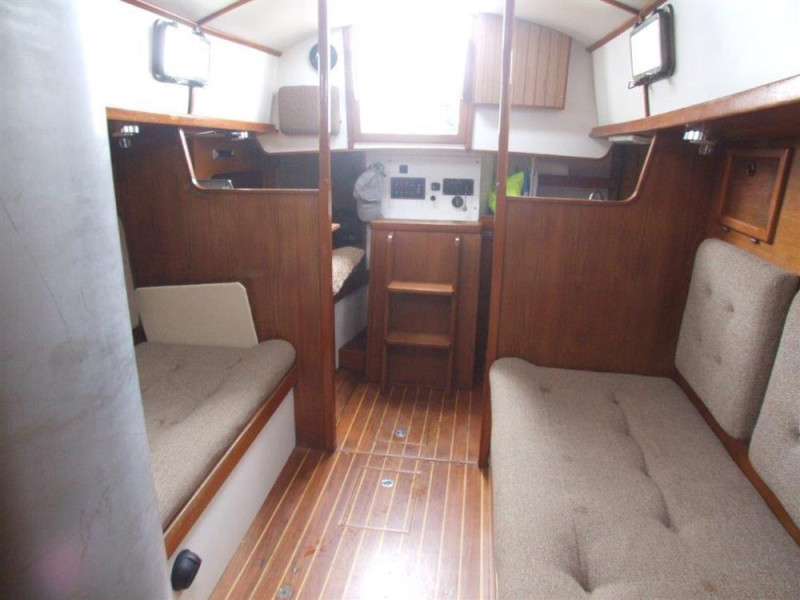

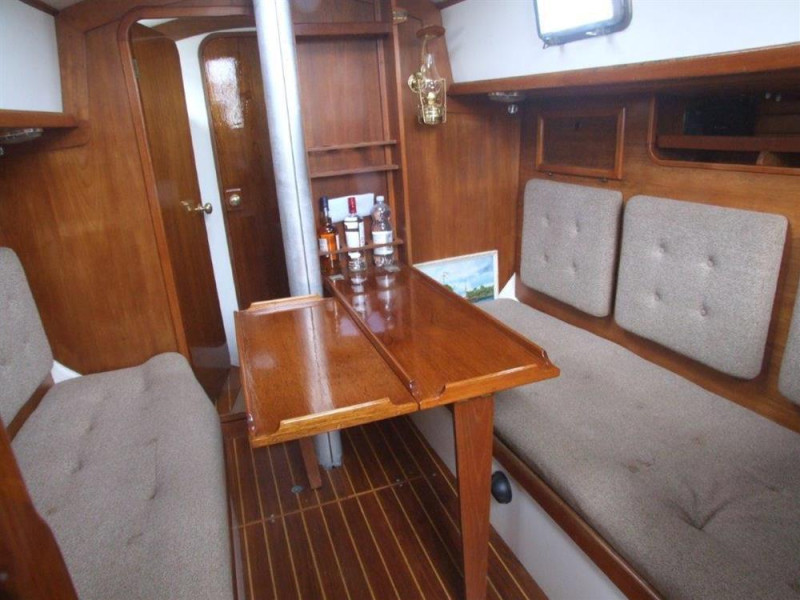

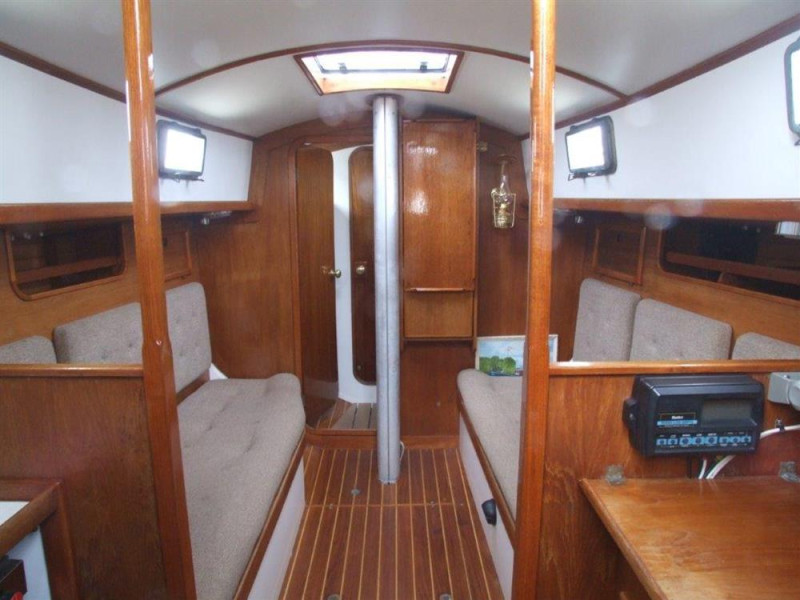

Saloon:
Bench type settees are provided port and starboard.

Access forward to the forepeak and heads on the port side of the keel stepped mast.

The settees both convert to single berths with lee cloths for use as sea berths.

Saloon table folds up flat against the bulkhead to the starboard side of the mast.

When the table is down a shelved bottle storage unit opens up on the bulkhead.

Storage is provided within the cabin in a mixture of cave type lockers behind the seat back cushions and opening lockers and shelf outboard of the seating 8.

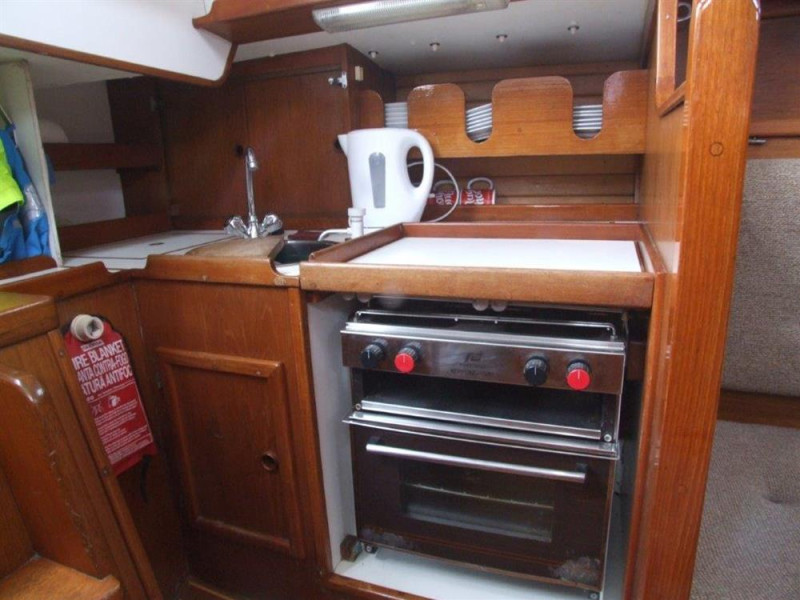

Galley:

Located to the port side of the companionway

L-shaped work surface with infill section in way of galley cooker.

Gas cooker mounted on gimbals outboard forward.

Stainless steel sink inset to worktop aft of cooker.

Top loading coolbox below section of worktop aft of sink.

Selection of storage above and below the work surface.

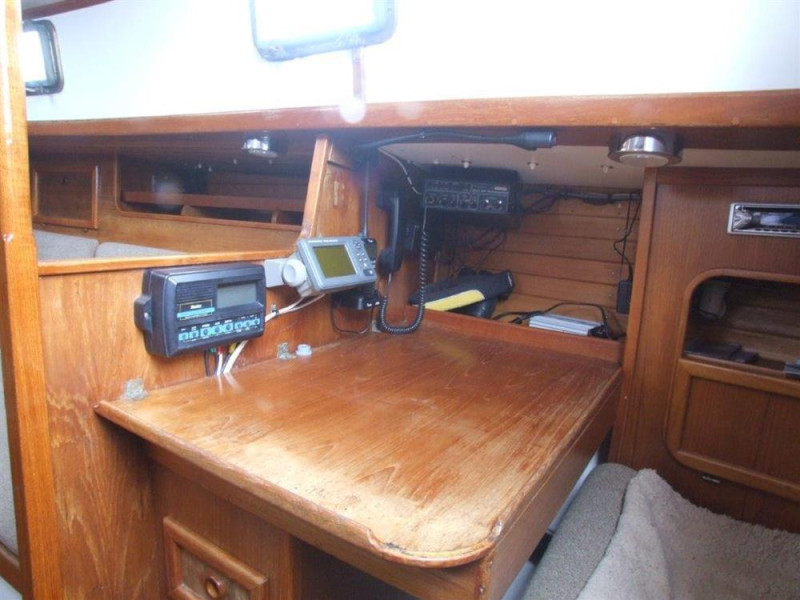

Nav Station / ¼ Berth:
Located on the starboard side of the companionway.

Forward facing chart table with navigator sitting on the forward end of the quarter berth.

Storage is provided in a series of drawers below the table with the working surface lifting to provide chart storage.

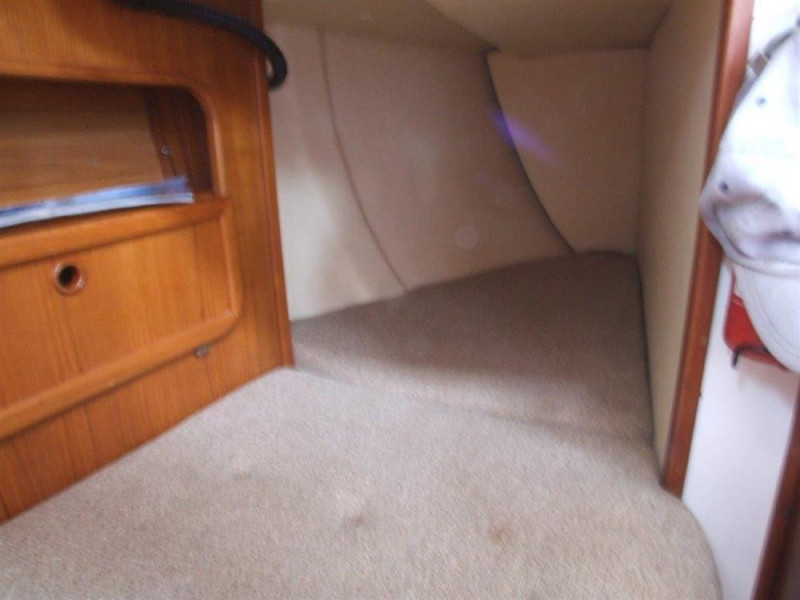

Quarter berth extends aft from the chart table.

Accommodation Equipment:

Galley:

Galley Stove - Plastimo Atlantic gas cooker. 2 burner, oven and grill.

Coolbox - Top loading, built-in unit.

Stainless steel sink

Cold water tap

Manually pumped freshwater tap

Heads:

Heads – Jabsco manual marine toilet

Stainless steel wash hand basin

Cold water tap with pull out showerhead.

Heating:

Eberspacher D2 diesel fired blown air system

Two outlets in cabin

Thermostatic cabin controller.

Lighting:

Overhead LED lighting throughout

Entertainment:

CD/Radio head unit

Speakers in saloon

Inventory

Electronics

Cockpit:

Raymarine i60 Tri-data for speed and depth

Raymarine i60 Wind Speed and Direction

Raymarine Element 7s Chartplotter

Magnetic compass

Chart table:

Depth/Speed/Log – B&G Hunter system, digital main control display

GPS – Furuno GPS Navigator

VHF – Skanti VHF Telephone

Anchoring & Mooring:

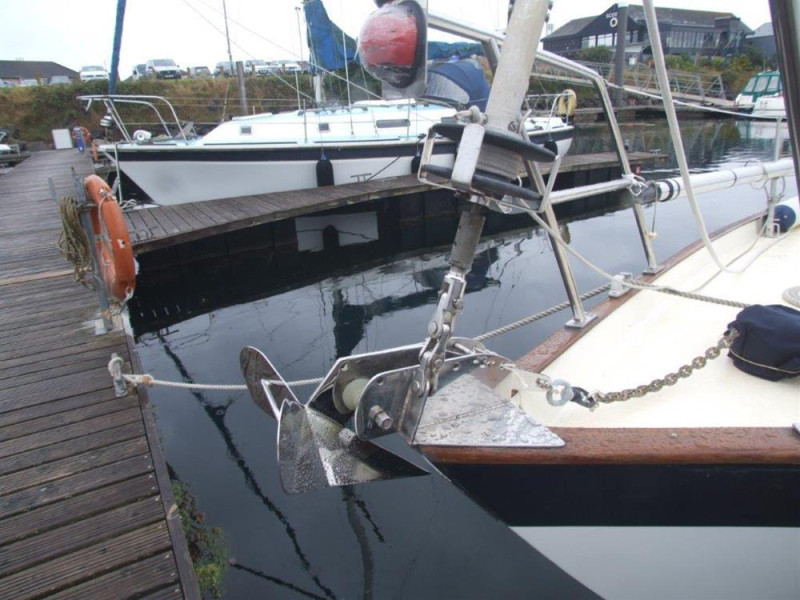

Main Anchor – CQR anchor on chain rode

Electric Windlass – Power up and down, with chain gypsy and warping drum. Controls in cockpit.

Mooring Warps – Selection

Fenders - Selection

Navigation Lights:

Masthead Tri-colour

Steaming light

Low level running lights

Life saving:

Horsehoe lifebuoy with light

Recovery line



Features

• Lazy bag
• Log speedometer
• Oven
• Refrigerator
• Lazyjacks
• Tiller
• Spray hood
• Gps
• Plotter
• Heating
• Depthsounder
• Vhf
• Marine head
• Wind speed and direction
• Cd player
• Shore power inlet
• Battened mainsail
• Electric bilge pump
• Radio
• Manual bilge pump
• Teak cockpit
• Battery charger
• Compass
• Furling genoa
